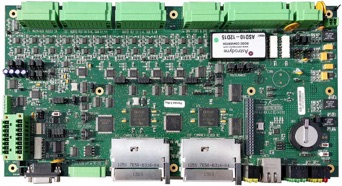

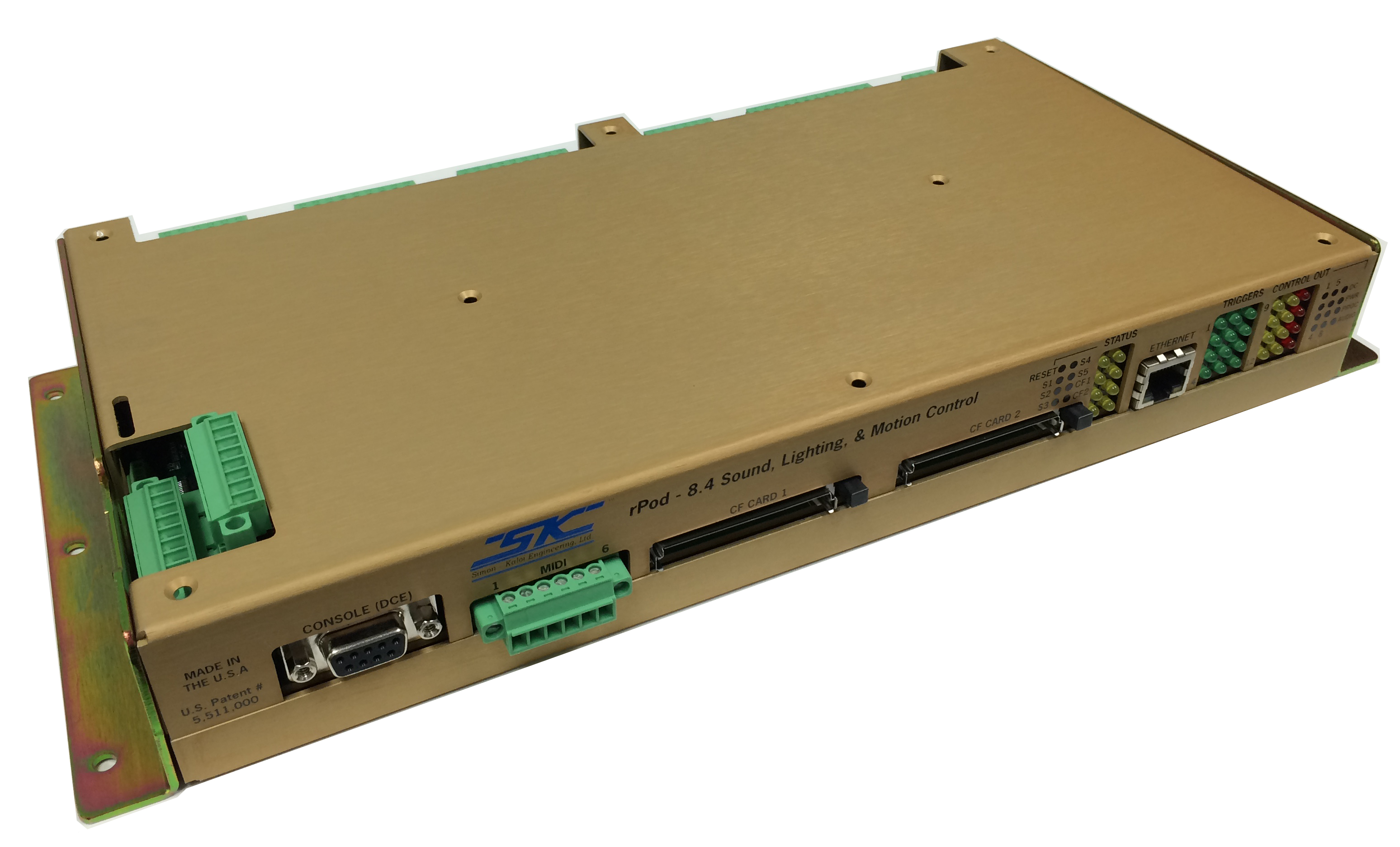

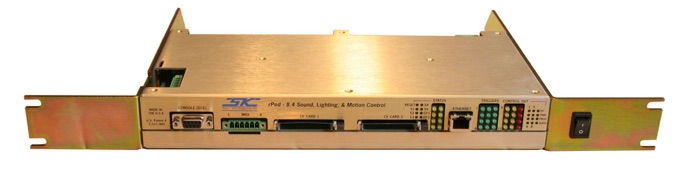

rPOD-8.4 rPOD-8.4 (PCB Assembly) rPOD-8.4ENC rPOD-8.4ENC — 1U Rack (Chemfilm or Black) rPOD-8.4ENCSM rPOD-8.4ENCSM (side mount enclosure)
◆ PREMIUM CONTROLLER

rPOD-8.4

Solid-State Sound, Lighting & Motion Controller
8 Audio Channels 4 Subwoofer Channels 2 Ch Mic Inputs w/Preamps 2 Ch Line Inputs On-Board DSP Full DMX512 Universe 2 RS-232 I/F RS485 I/F 12 Opto-Iso Inputs 12 Opto-Iso Outputs 10/100 Ethernet MIDI I/F Real-Time Clock Dual-Core Processors

Pro-audio quality with eight independent channels plus four subwoofer outputs and seven-band EQ per channel. Features audio polyphony, DMX512 for lighting/character control, real-time clock, dual RS-232 ports, dual CF interfaces, and a powerful user-programmable scripting language.

PDF Brochure
MS-2E
◆ COMPACT CONTROLLER

MS-2E (Mini-SAM IIE)

Solid-State Sound & Motion Controller
2 Audio Channels 1 Subwoofer Channel On-Board 80W x 2 Amplifier 2 Ch Line Inputs DMX512/RS485 I/F 8 Opto-Iso Inputs 16 Discrete Outputs 10/100 Ethernet On-Board DSP Real-Time Clock

2.1 stereo or 2 independent pro-quality channels (and subwoofer) with polyphony and on-board DSP. Built-in 80W X 2 audio power amplifier, real-time clock, DMX-512/RS485, 10/100 Ethernet, and Compact Flash interfaces. Ideal as an animatronic controller, digital doorbell, carillon player, or on-board audio application.

PDF Brochure
DMX16-DO
◆ DMX RECEIVER

DMX16-DO

DMX-512 Receiver / Controller
16-bit Output 250 Kbps 32 fps Open-Collector

Receives DMX512 data and converts to 16 bits of discrete open-collector control. On-board high-speed UART and micro-controller ensure 250 Kbits/sec with 32 frames/sec frame rate.

PDF Brochure
SES-5
◆ SOUND EFFECTS

SES-5

Sound Effects Simulator
5 Channels 16-bit PCM 256 Messages 5x 10W Amp Weatherproof

Five independent CD-quality channels with on-board record/playback. Five 10W power amplifiers, VFD and keyboard, RS-232. Water-resistant and rugged for outdoor use. Includes microphone and waterproof speaker.

PDF Brochure

Product Accessories

MM-100

MM-100 Message Man™

For Mini-SAM II

Locking enclosure with integrated speaker and motion sensor for POS and message repeating applications.

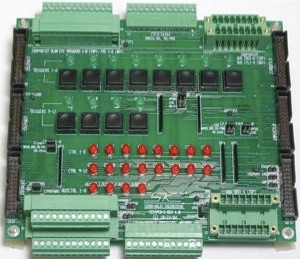

TESTPCB-5

TESTPCB-5

For Mini-SAM II, rPOD & DMX16-DO

IDC to Euro-style breakout with 12 trigger switches, 12 trigger LEDs, and 12 control LEDs.

MS-2TST

MS-2TST

Mini-SAM II Test Board

Tests all triggers and controls for MS-2 with optional breakout capability.

PS-24V

PS-24V

Regulated Power Supply

100-240 VAC input, regulated 24VDC @2.5A output for MS-2E, DMX-16DO and other devices.

MS2BKTV-1

MS2BKTV-1

For Mini-SAM II MS-2E

Vertical IDC to Euro-style breakout. No additional cabling required.

CF Card

SKE Certified
CF Card

Model: CF-4GB-4333

Tested and verified 4GB Compact Flash for rPOD-8.4 and MS-2E.

MS2E-CLIP

MS2E-CLIP

CF Card Clip — Hi-Vibration

Locks CF card for high-vibration environments like ride-vehicle OBA.

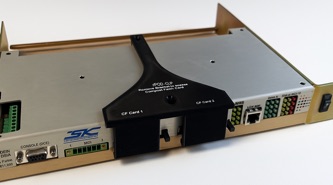

rPOD-CLIP

rPOD-CLIP

CF Card Clip — Hi-Vibration

Secures CF card in the rPOD-8.4 for high-vibration environments.

SKE VLQ1

◆ TEST EQUIPMENT

Video Latency Qualifier

Measures network video system latency to 1ms resolution. The LED Field Unit runs in the field while the Base Unit sits in the control room — a high-speed still camera captures the time difference between both displays.

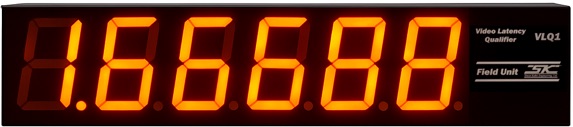

Field Unit Front
Field Unit — Front

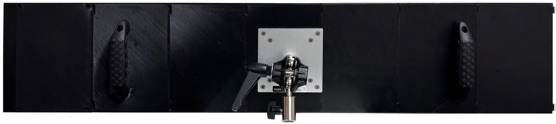

Field Unit Rear
Field Unit — Rear
Base Unit
Base Unit — Front
Measurement
Example Measurement
